Tile Tech Pedestal System
is is a innovative product, allowing for self leveling, single model for all height applications, screw adjustable, PVC pipe adjustable and are stack-able. The substrate can be either concrete or wood structure, with a roof membrane over the top.

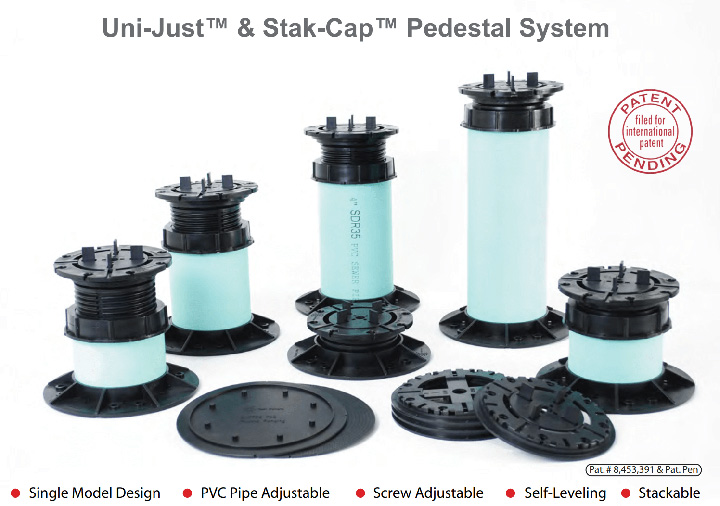

Our Pedestal™ System consists of 7 standard components and off-the-shelf, 4.215” diameter SDR-35 PVC sewer pipe. The PVC pipe allows the pedestal system to vary in height up to 24+ inches and is cut to the desired height using 12” chop saw. The Uni-Base is then “press fit” on to one end of the PVC pipe and a Uni-Collar on to the other end and requires no gluing or other attachments. Either 3/4” or 1-1/2” Uni-Insert is then screwed in to the Uni-Collar allowing for fine height adjustments. The assembly is completed by aligning and locking the Uni-Cap with the Uni-Insert. The Uni-Cap features include built-in self-leveling and removable 1/8” spacer tabs for proper paver spacing and joint alignment.
PVC pipe adjustment allows the pedestal system to vary in heights up to 24+ inches by using off-the-shelf 4”ř SDR-35 PVC pipe available everywhere. Eliminates material & shipping cost!
Screw adjustment allows for quick and easy fine height tuning for an additional 3/4” , 1-1/2” & 4? depending on model size of UNI-INSERT™ used. Eliminates having to cut pipe exactly!
Stack-able caps allow for minor height adjustments from 1/2” up to 2” and can compensate for slopes of 0% to 3% by aligning the built-in slope compensator of one cap relative to another. Simple, easy and affordable!
The popularity of energy-efficient
roofs, or Green Roofs, is increasing as its value is
appreciated. The intention of the Green Roof concept is
to take otherwise heat producing areas, such as rooftops
and plazas, and provide a cooler environment. The result
is a cooler roof decreasing the buildings energy
consumption and reducing the heat island effect. The
Green Roof concept has seen wide spread acceptance
within the construction community.
